stainless steel bar, angle and channel, 3-500 mm, round / flat / square / hex, 6 m lengths, bright or pickled. Cut to length, EN 10204 3.1 MTC.
Theoretical weight for stainless steel (7,930 kg/m³). Actual weight depends on grade and mill tolerance.

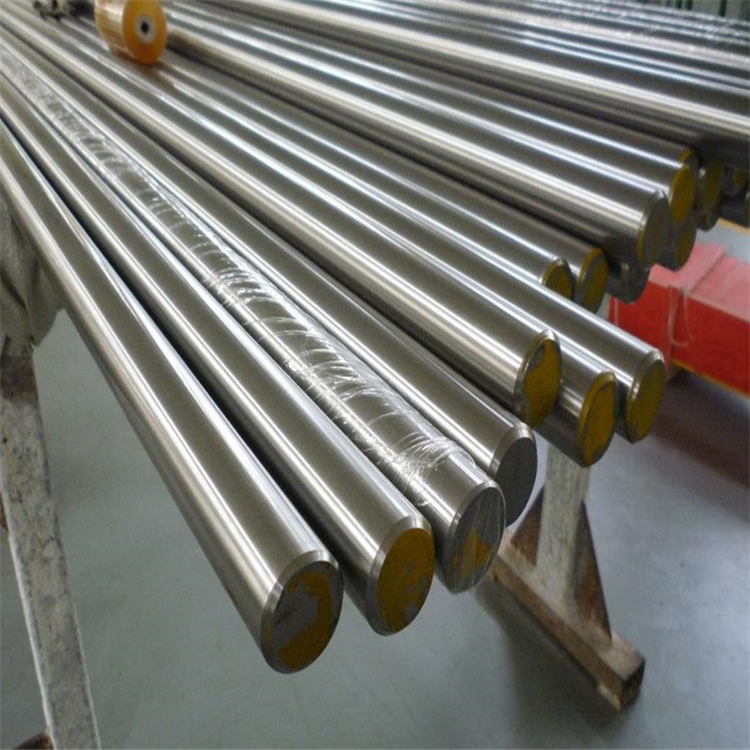

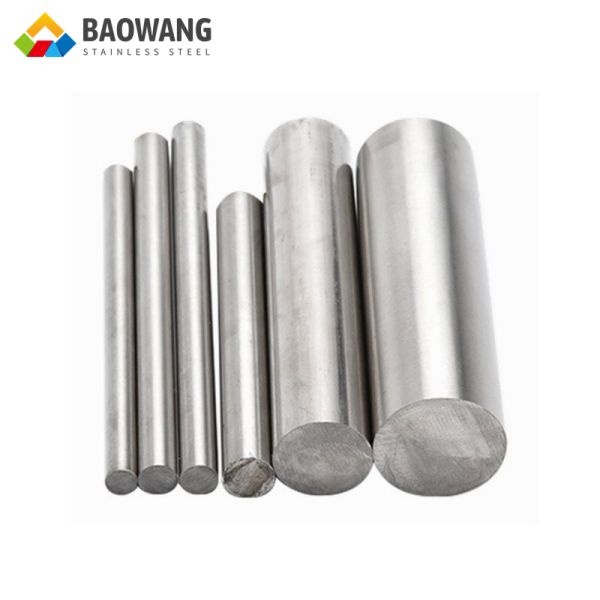

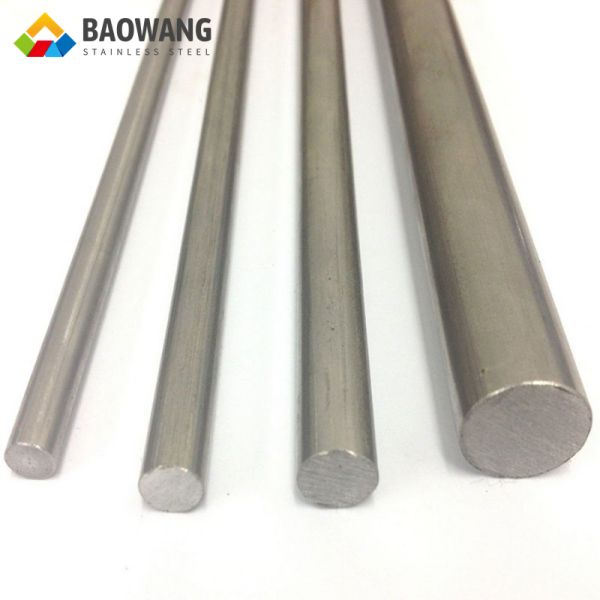

DIN/EN1.4438 SUS 317L Stainless Steel Round Bars for Sale 317L Round Stainless Steel Bar combines excellent corrosion resistance, high-temperature strength, and ease of fabrication, making it a preferred choice for applications in industries such as chemical processing, petrochemical, 1. Size Chart: The common sizes for 317L Round Stainless Steel Bar range from 1/8" to 16" in diameter. The length of the bar commonly varies from 12' to 20', but custom lengths can also be obtained. 2. Chemical Compositions: The primary chemical composition of 317L Round Stainless Steel Bar includes: Chromium (Cr): 18-20% Nickel (Ni): 11-15% Molybdenum (Mo): 3-4% Manganese (Mn): 2% max Silicon (Si): 0.75% max Phosphorus (P): 0.04% max Sulfur (S): 0.03% max Carbon (C): 0.03% max 3. Features High corrosion resistance: Due to its high molybdenum and nickel content, 317L Round Stainless Steel Bar exhibits excellent resistance to corrosive environments, including acidic and chloride-containing solutions. Elevated temperature strength: This stainless steel bar maintains its mechanical properties even at high temperatures, making it suitable for applications in elevated temperature environments. Low carbon content: The low carbon content in 317L Round Stainless Steel Bar minimizes the risk of carbide precipitation during welding, which helps to prevent intergranular corrosion. Non-magnetic: Unlike some other stainless steel grades, 317L is non-magnetic, making it suitable for certain applications where magnetism is undesirable. Easy fabrication: 317L Round Stainless Steel Bar can be easily formed, welded, and machined, allowing for flexibility in various fabrication processes.
| Product Name | ASTM 201 202 301 302 303 304 304L 310 316 316L 409 410 416 420 430 630 stainless steel hexagonal bar price list |
|---|---|
| Type | Round bar,Angle bar,Channel bar,Square bar,Flat bar,I/H bar,Hexagonal bar and profiles |
| Surface | Black,bright,rough turned,grinding,centreless Ground etc |
| Standard | GB,AISI,ASTM,DIN,EN,SUS,UNS etc |
| Diameter | 0.5-500mm |
| Technique | Hot Rolled,Cold Rolled,Cold Drawn,Forged |
| Tolerance | H8,H9 or as required |
| Grade | 200 series: 201,202,202Cu,204Cu |
| 300 series: 301,303/Cu,304/L/H,304Cu,305,309/S,310/S,316/L/H/Ti,321/H,347/H,330 | |
| 400 series: 409/L,410,416/F,420/F,430,431,440C,441,444,446 | |
| 600 series: 13-8ph,15-5ph,17-4ph,17-7ph(630,631),660A/B/C/D | |
| Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760,2304,LDX2101.LDX2404,LDX4404,904L | |
| Others: 153Ma,254SMo,253Ma,654SMo,F15,Invar36,1J22,N4,N6 etc | |
| Alloy : Alloy 20/28/31 | |
| Hastelloy: Hastelloy B / B-2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N | |
| Haynes: Haynes 230/556/188 | |
| Inconel: Inconel 100/600/601/602CA/617/625713/718738/X-750,Carpenter 20 | |
| Incoloy: Incoloy 800/800H/800HT/825/925/926 | |
| GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044 | |
| Monel: Monel 400/K500 | |
| Nitronic: Nitronic 40/50/60 | |
| Nimonic: Nimonic 75/80A/90 | |
| Nickle: Nickle 200/201 |
| ASTM / AISI | EN | JIS | GB | Typical use |
|---|---|---|---|---|
| 304 / S30400 | 1.4301 | SUS 304 | 06Cr19Ni10 | General fabrication, kitchenware, food equipment |
| 304L / S30403 | 1.4307 | SUS 304L | 022Cr19Ni10 | Welded assemblies, low-carbon requirement |
| 316L / S31603 | 1.4404 | SUS 316L | 022Cr17Ni12Mo2 | Marine, chemical, coastal architecture |
| 321 / S32100 | 1.4541 | SUS 321 | 06Cr18Ni11Ti | High-temperature service up to 800 °C |
| 430 / S43000 | 1.4016 | SUS 430 | 10Cr17 | Indoor appliances, automotive trim |
| 201 / S20100 | 1.4372 | SUS 201 | 12Cr17Mn6Ni5N | Cost-sensitive indoor applications |
| 2205 / S32205 | 1.4462 | SUS 329J3L | 022Cr23Ni5Mo3N | Duplex: high strength, chloride resistance |
| Grade | Tensile strength | Yield strength (0.2%) | Elongation | Hardness |
|---|---|---|---|---|
| 304 | ≥ 515 MPa | ≥ 205 MPa | ≥ 40% | ≤ 201 HBW |
| 316L | ≥ 485 MPa | ≥ 170 MPa | ≥ 40% | ≤ 217 HBW |
| 430 | ≥ 450 MPa | ≥ 205 MPa | ≥ 22% | ≤ 183 HBW |
| Item | Range | Tolerance |
|---|---|---|
| Thickness | 0.1 – 200 mm | ±0.02 mm (cold rolled) / ±0.3 mm (hot rolled) |
| Width | 1000 / 1219 / 1250 / 1500 mm | ±1 mm, or cut to size |
| Length | up to 6000 mm | ±3 mm |
| Flatness | — | ≤ 3 mm / m |
Need a tighter tolerance or a non-standard size? Send your drawing and we will confirm feasibility before quoting.
| Form | Thickness / OD | Width / Length | Typical finish | Standard |
|---|---|---|---|---|
| Sheet & plate | 0.3 – 200 mm | 1000 / 1219 / 1250 / 1500 × 2438 / 3000 / 6000 mm | 2B, BA, No.4, HL, 8K | ASTM A240, EN 10088 |
| Coil & strip | 0.3 – 3.0 mm | slit 20 – 1500 mm, ID 508 mm | 2B, BA | ASTM A240 |
| Pipe & tube | OD 6 – 630 mm | wall 0.5 – 30 mm, length 6 m | Annealed, pickled | ASTM A312 / A554 |
| Bar, angle & channel | 3 – 500 mm | round / flat / square / hex, 6 m | Bright, peeled, ground | ASTM A276 |
| Aluminum | 0.3 – 200 mm | 1000 – 1500 mm wide | Mill, brushed, anodized | ASTM B209 |
| Copper & brass | 0.5 – 100 mm | bar / rod / tube | Bright, mill | ASTM B187 |
Looking at a different form? Tell us the finished part and we will suggest the closest stock or processing route.
Yes. Send us a size list or drawing and we will cut, slit, bend or drill to your tolerance and quote the processed price.
We can ship from one tonne for stock items. Mixed containers with other sizes and grades are welcome.
Every shipment is supplied with an EN 10204 3.1 mill test certificate listing chemical composition and mechanical properties.
Steel prices change with the market. Send your specification through the form below and we will quote the current price within 8 working hours.
Before You Order
Five decisions cover most orders. If any of them is unclear, send us the drawing or the application and we will narrow it down.
